Create A NexT-Themed Hexo Blog on GitLab

Posted on Edited on Views: Disqus:

To keep the tutorial concise, I proceed in a fashion that simply outlines the procedure without diving into what’s under the hood. I hope this approach gives you a big picture of what you are going to accomplish and allow you to build up your Hexo blog site procedurally with a peaceful mind as I did.

Prerequisites

Download the latest version of (1) Nodejs, (2) npm and (3) Git.

Be sure they are up to date.

Configuration

First, refer to the post “Getting Started“ to install the framework of the static site generator Hexo. You will go through the process of (1) installing, (2) upgrading, (3) initiating, and (4) configuring of a popular Hexo theme, NexT, after establishing the backbone of Hexo.

It’s noteworthy that do NOT directly modifying the theme config file. If you have no idea of what I am talking about, that’s fine. We will reach the point again later.

Before moving onto the next step, you need to have:

  1. A GitLab account.

  2. Initiate a new project on GitLab.

    You can check out this GitLab document about “creating a new page projects.“ Leave the GitLab CI setup to next paragraph. For general applications such as building your personal website, set the repository to public.

  3. Create a pair of SSH keys (public and private).

    You can check out my post “Separate GitHub and GitLab SSH Keys in the Same Machine” to learn the creation of a SSH key for the access to GitLab.

Second, refer to this post “Deployment“ (all the way to the GitLab CI section) to test your blog on local machines and, if things run as you expect, then deploy your blog to public web page services. After adding .gitlab-ci.yml to the root directory, you are almost there. What’s left is to upload your blog to the GitLab repository using commands similar to what follows.

But be mindful NOT to upload the directory which Hexo (or other static site generator) generated locally. Otherwise you’ll have duplicated contents and you might face build errors. For example, do not commit the public directory in the Hexo deployment. (Based on my personal experience, this issue seems to be taken care of automatically by Hexo, so you don’t know what I said. You should be fine.)

Here is an example of this final step:

$ cd existing_folder
$ git init
$ ssh -T git@gitlab.com # check if the connect is built.
$ git remote add origin git@gitlab.com:libinruan/libinruan.gitlab.io.git
# Three key commands for Hexo deployment
$ git add .
$ git commit -m "Initial commit"
$ git push -u origin master

Adding Theme Gadgets

Now, you are arriving at the milestone that you fully control what you Hexo website looks in public.

Firstly, run one of the following commands depending on how you installed the NexT theme. By doing so, you are ready to conduct alternative theme configuring as mentioned in the NexT official doc.

# If your NexT theme was installed through npm
cp node_modules/hexo-theme-next/_config.yml _config.next.yml
# If your NexT theme was installed through Git
cp theme/next/_config.yml _config.next.yml

Take this scenario for example.

If we like to set the theme scheme to Gemini, open _config.next.yml and copy the code snippet:

theme_config:     # This is the section line.
  scheme: Gemini  # we make a 2-space indent to move key and value pairs rightward.

Paste the code snippet into your site’s config file _config.ymml. Be sure to strictly follow the 2-space indentation rule when modifying either of the config files.

Enabling Disqus Comment System

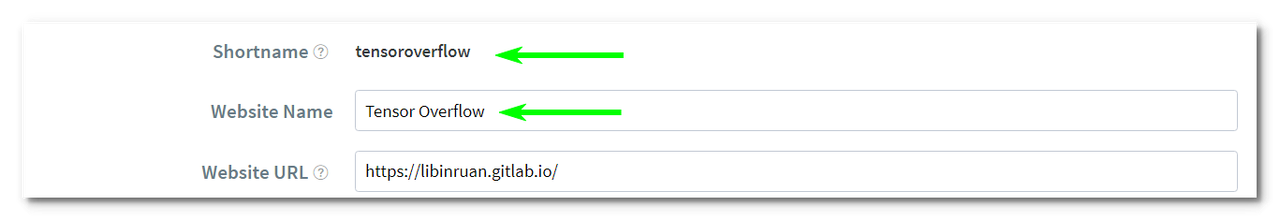

Check the official doc for details. The only bump on the road is not to mistake shortname for website name.

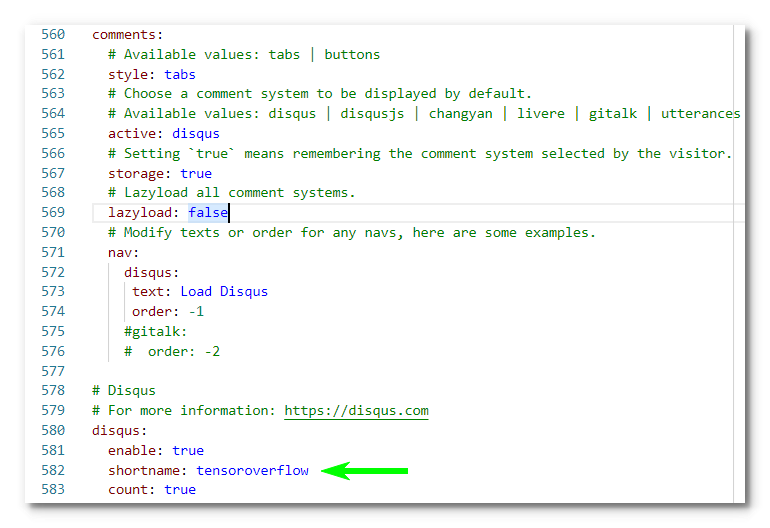

In the theme’s config file, your setting should look similar to the following example:

Rendering Math Equations

There exists many choices to render Latex math equation under Hexo. After a series of trials and errors, I decide to install Hexo-Filter-MathJax because, as of February 27, 2021, the approach widely recommended on the Internet that needs to invoke Hexo-Render-Pandoc doesn’t work for my newly built Hexo site. Check its official GitHub webpage for step-by-step installation instructions.

Sometimes, we may want to give our post the feature of numbering and referring multi-line equations rendered by MathJax. To do so, check NexT official doc for a configuration instruction.

Tracking View Counts

For tracking the view count of respective posts, my approach is to register a leancloud account, and then refer to the instruction of a Chinese tutorial, 为NexT主题添加文章阅读量统计功能.

After the installation, if you run into the following error messages or glitches:

  1. The Counter not initialized! More info at console err msg. error message displayed next to the view count icon,
  2. The TypeError: Cannot read property 'enable_sync' of undefined error message when you run the hexo clean && hexo g && hexo s command, or
  3. The value of view count is fixed at zero regardless of how many times you visited the post,

then you need to check out the official README.md file of the package in the directory for setting up your config file right:

[your-blog-archive]/node_modules/hexo-leancloud-counter-security

It’s noteworthy that both the site’s and the theme’s config files need to be written up for enabling this feature.

Specifically, in your theme’s cofig file add something similar to this template:

leancloud_visitors:
  enable: true
  app_id: HYu2e8NOepSkPGNaki6ORRwd-MdYXbMMI # <your app id>
  app_key: fFcNhMkx0fGED4yrEqsb8F14 # <your app key>
  betterPerformance: false
  security: false

In your site’s config file, the configuration should look like something similar to this:

leancloud_counter_security:
  enable_sync: true
  app_id: HYu2e8NOepSkPGNaki6ORRwd-MdYXbMMI # <your app id>
  app_key: fFcNhMkx0fGED4yrEqsb8F14 # <your app key>
  # Required for apps from CN region
  server_url: # <your server url>

Enabling the Creative Common Icon

In /themes/next/_config.yml, search for the block of creative_commons. Set the value of post to true.

Changing Tag Icons in the Post Bottom

In /themes/next/_config.yml, set the value of tag_icon to true.

Synchronizing Local Browser with Real-Time Blog Changes

Install the plugin hexo-browsersync.

Enabling Google SEO

Check out this link for details. The outline of the procedure is (1) select URL prefix, (2) choose the HTML Tag option, (3) copy and paste the sitemap.xml file to your site’s root directory, and (4) get Google verify your setup. The only bump on the road is to copy and paste the generated verification code (including the double quotation marks around the combination) into your site’s config file.

Next, stay in the Google Search Console, go to Help (the circle icon with a question mark), type and search for robot.txt, and get your robot.txt tested (if not exists, create one and save it in the folder /source) as mentioned in this post.

Creating a New Post

To create a new post template, run in the root directory:

$ hexo new post "filename-of-the-new-post"

It’s worthy of noting that the filename of the new post needs not to be the same as the value of the field title you specify in the front-matter of the new post. Throughout your website, the identity of the new post is only displayed as its title rather than its filename.

Deployment

From now on the typical workflow for you to publish new Hexo blog posts to GitLab is as follows:

Step 1. Review your site locally before committing it to GitLab by running:

$ hexo clean && hexo g && hexo s --debug -p 4001 # 4000 by default

IMPORTANT! Do not use the outdated approach $ hexo d to deploy your blog, if you choose GitLab as the remote repository.

Step 2. Once everything runs living up to your expectation, commit and push it to GitLab:

$ git add .
$ git commit -m "Some-Comment-On-Thie-Update"
$ git push -u origin master

You’re all set.

Troubleshooting

Reverting to Previous Version

The GitLab CI pipeline would raise a red flag by sending you a failure message if your submission contains errors. To revert your work to previous normal edition, follow the procedure below:

  1. Navigate to your blog’s commits page on GitLab. For example: mine is located in

    https://gitlab.com/libinruan/libinruan.gitlab.io/-/commits/master

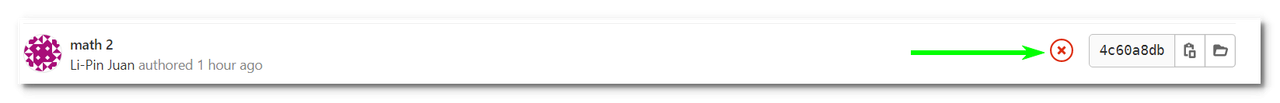

  2. Click on the red cross that is next to the latest version that causes the error. It looks similar to this screenshot:

  3. Choose Revert and proceed to Merge.

  4. After clicking on the button Merge, go back to local command line and run:

    $ cd /path/to/your/blog
$ git pull

    Now, your blog are reverted back to the latest normal version.

Common Hexo Commands

Run npm list to check to see which package is listed as UNMET DEPENDENCY. Then npm install the package to resolve thie issue.

For instance:


$ ├── UNMET DEPENDENCY css-loader@^0.23.1
$ npm install css-loader@^0.23.1

Conclusion

Now that you have a brand new blog running on GitLab, every time you post new articles or make some tweak on your blog, repeat the routine outlined above to preview, commit, and publish your blog. Happy blogging!
